AIS-Pro Series

AIS-Pro Series

Curved / Cube / Totally front & rear service Indoor LED Wall

AIS195 Pro
AIS265 Pro
AIS395 Pro

Advanced Technology

⚡ Ultra Light & Slim
Only 3.96cm depth. Weights: 3.2kg, 5.6kg, 11kg. Perfect for wall mount installations..
🔧 Easy Maintenance
Magnetic structure allows complete front maintenance. One-button back cover opening.
🔌 Low Power
Max 480W/m² consumption. Energy efficient and cost-effective operation.
🎨 Creative Splicing

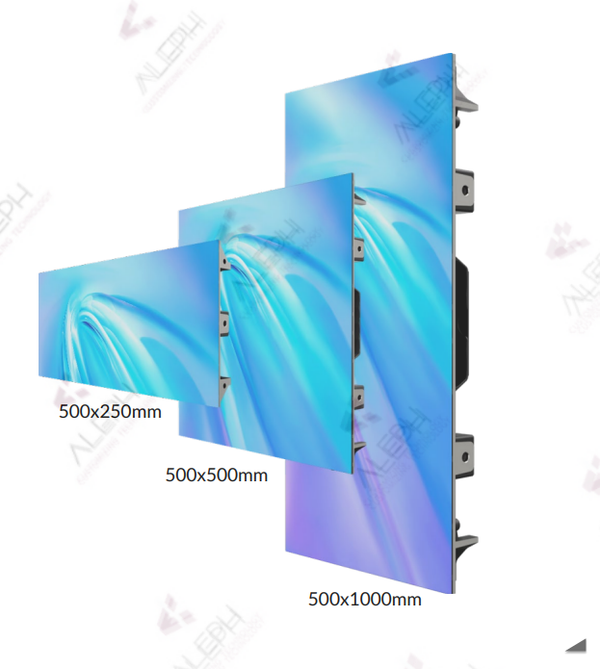

Mix 500x250mm, 500x500mm, and 500x1000mm panels. Horizontal and vertical options.
🌡️ Heat Dissipation
Large cooling plate design. No external cooling needed, silent operation.
🎯 Seamless Splicing
Built-in limiting screws ensure perfect panel alignment every time.
🔄 Dual Backup
Optional power and data redundancy for mission-critical installations.
📐 Flexible Design

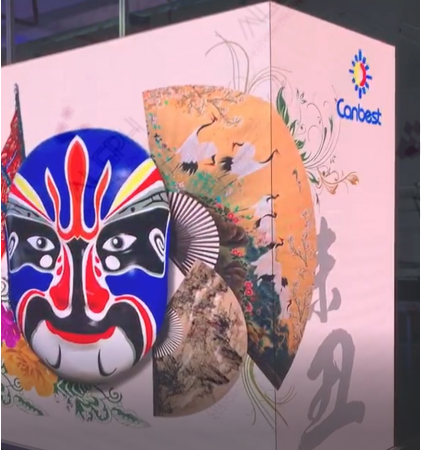

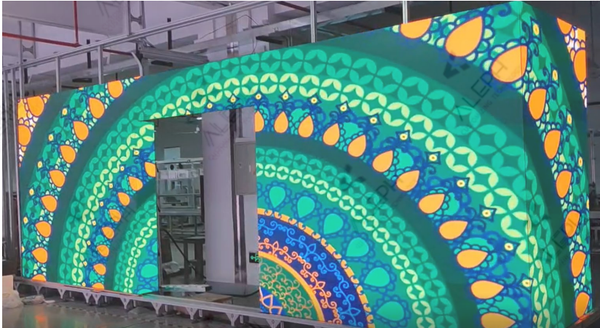

100% Convex, concave, right-angle, cube, and hanging installations available.

Technical Parameter

Model AIS195 Pro AIS265 Pro AIS395 Pro
Pixel Pitch (mm) 1.95 2.6 2.6 2.6 3.9 3.9 3.9
Pixel Density(dots/m²)
262144
147456
65536
Panel Size(mm) 500*250 500*500 500*1000 500*250 500*500 500*1000 500*250 500*500 500*1000
Panel Material
Die casting aluminum
Panel Weight(Kg/panel) 3.2 5.6 11 3.2 5.6 11 3.2 5.6 11
Color Depth(Bit)
14
Refresh Rate (Hz)
1920~2880
1920~3840
Brightness (nit)
800-1000
Input Voltage (V)
AC200~240V±10%(50Hz/60Hz)
Max Power Consumption (W/m²) 340 480 500
Ave. Power Consumption (W/m²) 120 160 170
Protection Grade(F/R)
IP30/IP30
Installation Type
Front & Rear Installation
Maintenance Type
Front & Rear Maintenance

Customization Options

📐 Cabinet Sizes
00*250 500*500 500*1000/500*250 500*500 500*1000/500*250 500*500 500*1000
🎨 Color Options
White, Black, Silver, Grey
🏗️ Cabinet Material
Die casting aluminum
🔧 Maintenance
Fully front & rear access for module replacement


AIS Pro Series

Curved / Cube / Totally front & rear service Indoor LED Wall

Greatly save the space for wall mount, also cutting down cost dramatically, Max Power consumption is 480W/ , energy saving and save operating costs, Protecting the bottom LEDs from damaged during installation

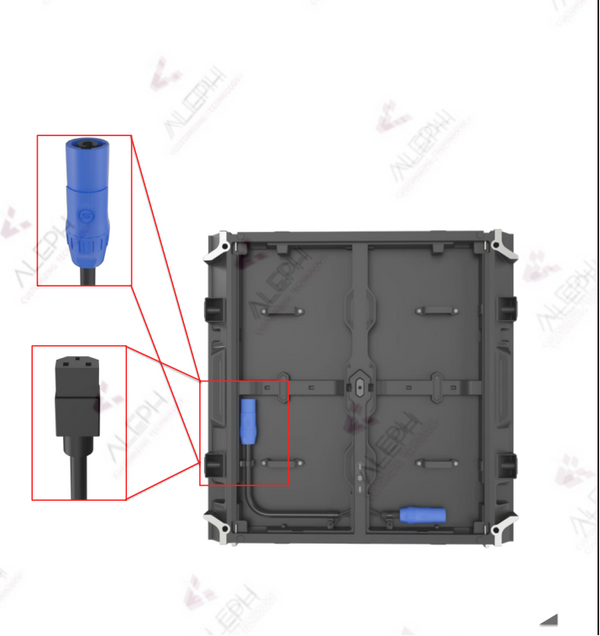

More Compatible Interface

Multiple Size & Pixel Pitch Available

A-Pro Series - Best Common Cathode Aluminum Display | Aleph Digital Labs

Industry-Leading Warranty

5 YEARS WARRANTY

Common warranty in LED field is 2 years, ours is 5 years. Longer warranty periods, better after-sale services, worry-free user experience.
