AIW Series

Indoor Wall Mounted LED Display

AIW155
AIW185
AIW255

Advanced Technology

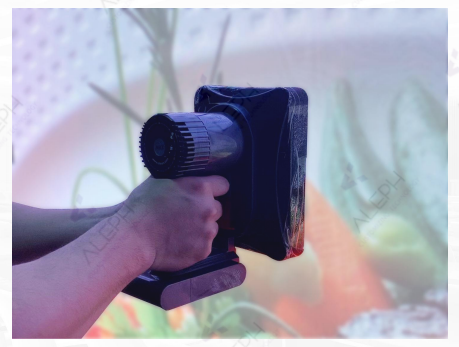

🔧 Complete Front Service
Module, receiving cards, and power supplies can be maintained from the front. No maintenance channels needed, saving space and reducing complexity.
🪶 Light & Thin Design
Die-casting aluminum cabinet weighs only 6.8 kg with 7.5cm thickness. Saves on structure and installation costs dramatically.

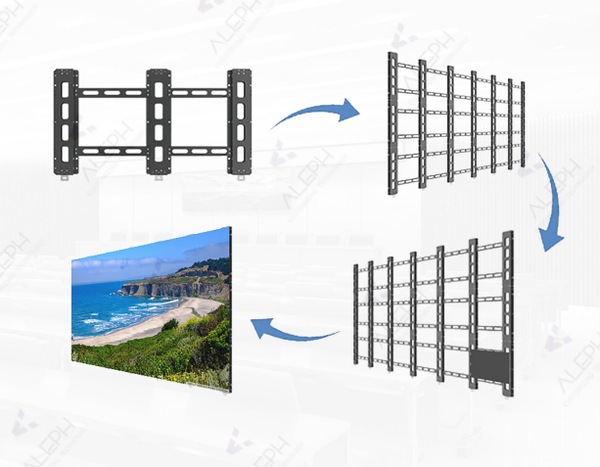

⚡ Easy Installation
Ready-made brackets ensure the whole screen is flat and seamless. Just 4 steps to finish the installation process.
🛡️ Three-Proofing Lacquer
PCB surface painted with protective lacquer forming a film that's dust-proof, moisture-proof, and corrosion-proof. Prolongs lifespan significantly.

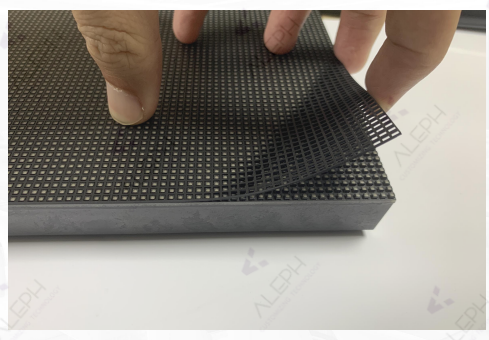

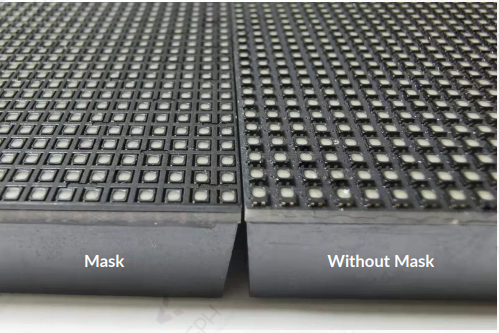

🎭 Protective Mask Design
Embedded mask protects LEDs from collision and dust. Higher contrast for better display effects while reducing maintenance costs.
📦 All-in-One Package
Complete package includes brackets, panels, spare modules, power distribution box, control system, and aviation plugs.
🔄 Future-Proof Design
Shareable HUB & power supply with same panel design. Easy to renew or upgrade your screen after long-term usage with newest technology.
💎 High Contrast & Quality
Pure Black LED with 5000:1 contrast ratio, 16-bit PWM, and high refresh rate for professional-grade image quality.
📸 Camera-Friendly
High refresh rate of 3840Hz eliminates scan lines when shooting with cameras. Perfect for broadcast and professional photography.
🌈 High Grayscale
14-bit color depth with integrated ghost elimination and lamp protection circuits for superior color accuracy and smooth gradients.
🌡️ Wide Operating Range
Operates from -40°C to 85°C with 10%-95% humidity tolerance. Extremely reliable in various indoor environments.
🔌 Aviation Plug Connectors
Professional aviation-grade plugs ensure stable, reliable connections with superior safety and durability.

Technical Parameter

Model AIW155 AIW185 AIW255
LED Type SMD1212 SMD1515 SMD1515
Physical Density (dots/m²) 422,500 289,050 160,000
Module Size W×H×D (mm) 320×160×17 320×160×17 320×160×17
Module Resolution W×H 208×104 172×86 128×64
Cabinet Size W×H×D (mm) 640×480×74 640×480×74 640×480×74
Cabinet Material
Die Casting Aluminum
Scanning Mode 1/52 1/48 1/32
Cabinet Flatness (mm) ≤0.10 ≤0.10 ≤0.10
Grey Scale (Bit)
14
Protection Level
IP45
Brightness (cd/m²)
900
Color Temperature
3200-9300K (Adjustable)
Brightness Uniformity
≥98%
Viewing Angle (H/V)
≥140° / ≥120°
Contrast Ratio
≥5000:1
Module Input Voltage
DC 5V
Max Refresh Rate (Hz)
≥3840
Input Voltage (AC)
110-220V
Cabinet Max Power (W/m²) ≤600 ≤580 ≤480
Cabinet Avg Power (W/m²) ≤200 ≤180 ≤160
Working Temperature (°C)
-20 ~ +80
Working Humidity (RH)
10% ~ 95%
Installation/Service Method
Front Installation / Front Service

Installation Methods

🏢
Wall Mounted
Back bracket with panel attachment for permanent wall installations
🎪
Hanging
Connection plate, panel, and hanging beam system for suspended displays
📊
Stacking
Back bracket, panel, and ground support structure for freestanding installations
AIW Series

16-Bit PWM constant current source output

Operating temperature range: Torp=-40～ 85℃
• Integrated ghost elimination function
• Integrated lamp protect circuit , reducing lamp damage
• Effectively solve color blocks, color deviation
and darkness of first line when low-gray

Light & Thin

Easy Installation

A-Pro Series - Best Common Cathode Aluminum Display | Aleph Digital Labs

Industry-Leading Warranty

5 YEARS WARRANTY

Common warranty in LED field is 2 years, ours is 5 years. Longer warranty periods, better after-sale services, worry-free user experience.
