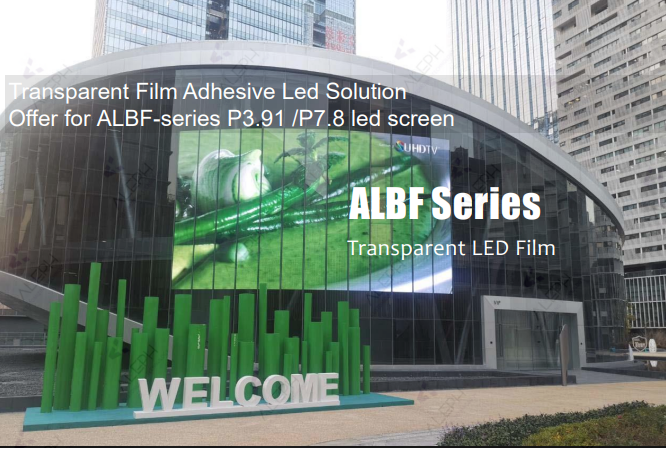

ALBF Series

Transparent LED Film - Adhesive LED Solution

P3.96-7.8
P7.8-7.8
P10.4-10.4

Advanced Technology

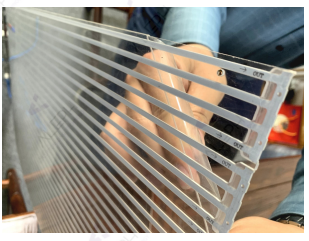

🪶 Super-Light & Ultra-Thin
Incredibly lightweight at just 3.5 kg/m² with only 3mm thickness. The thinnest and lightest LED solution available.

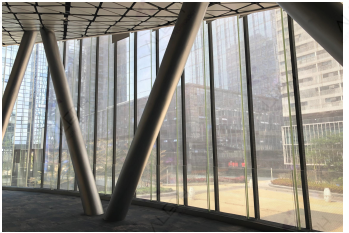

💎 High Transparencyn
Up to 86% transparency allows glass to remain visible after installation with no adverse effects on the original design.

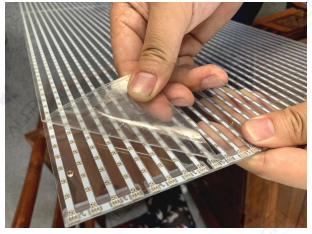

⚡ Simple Installation
Self-adhesive film can be easily attached to existing window glass without any complicated construction or structural changes.
🛡️ Anti-Collision Design
PC flexible material prevents component breakage and withstands impact of 2kg/m². Durable and reliable.
✨ Safe & Beautiful
No components visible on screen surface. Hidden power supply ensures safe, reliable, clean and beautiful appearance
📐 Any Size Achievable
Film size can be fully customized according to your glass dimensions and project requirements.
🏗️ No Structure Changes
No need to modify installation site structure, dramatically reducing shipping and installation costs.
🌀 Curved Format Supported
Flexible design supports convex and concave applications for curved glass or window installations.
🌡️ Superior Heat Dissipation
High photoelectric conversion efficiency reduces failure rate and significantly prolongs screen lifespan.
👁️ Wider Viewing Angle
160° viewing angle on all sides with no dead angles or color bias. Covers and attracts people over larger areas.
💎 High Contrast
Pure White LED with 5000:1 contrast ratio and 14-bit color depth for stunning visual quality.
📸 Camera-Friendly
High refresh rate eliminates scan lines when shooting with cameras. Perfect for broadcast and photography.

Technical Parameter

Model P3.96-7.8 P7.8-7.8 P10.4-10.4
Pixel Pitch (mm) 3.96 × 7.8 7.8 × 7.8 10.4 × 10.4
LED Panel Size (mm) 1500 × 500 1687.5 × 500 1500 × 1000
Resolution per Panel 378 × 64 216 × 64 144 × 48
LED Lamps
Nation Star SMD1921
IC
SM16218 / MY9866
Brightness (nits) 4000-4500 5000-5500 5000-5500
Power Consumption (W/m²) 800 400 400
Transparency 56% 45% 60%
Pixels per m² 32,256 16,384 9,216
Installation Method
Paste Fixed Installation
Scan Mode 7 4 2
Refresh Rate (Hz)
3840
Controller
Novastar TB30
Weight
3.5 kg/m²
Thickness
3mm
Viewing Angle
160° (All Angles)
Contrast Ratio
5000:1
Color Depth
14 Bit
ALBF Series

Safe and Beautiful

No components on the screen, hidden power supply, safe and reliable, clean and beautiful.

Super Light, Ultra Thin

Cables and power Supply

A-Pro Series - Best Common Cathode Aluminum Display | Aleph Digital Labs
⚠️ Important Installation Note

Due to the glass heat factor, Aleph Digital Labs will install the transparent screen with a suitable distance from the glass based on the building's internal heat dissipation, using appropriate measuring devices to ensure optimal performance and longevity.

Industry-Leading Warranty

5 YEARS WARRANTY

Common warranty in LED field is 2 years, ours is 5 years. Longer warranty periods, better after-sale services, worry-free user experience.
