A-Pro Series
📞 +971 50 3597700 | 📧 Sales@aleph-digitallabs.com

A-Pro Series

The Best Common Cathode Aluminum Display

A5 Pro
A6 Pro
A8 Pro
A10 Pro

Key Features

🛡️

Super Safe

  • TUV 5VB fire test approved
  • IP66 certification test
  • EMC-Class B test certification
☀️

Super High Brightness

  • High brightness more than 10,000 nits
  • Light decay ≤5%
  • Still as new after 5 years
⚖️

Super Lightweight

  • Only 28kg/m² for aluminum panel
  • Thickness: 75mm
  • Full front or rear maintenance
  • Saves installation space
⚡

Super Energy Saving

  • Common cathode energy-saving circuit design
  • More than 50% energy-saving vs traditional screens
  • Good heat dissipation
  • No need for air conditioners
💪

Super Stable

  • Common cathode energy-saving design
  • All-aluminum module shell
  • Excellent heat dissipation
  • Cable-less connection
🧠

Smart Control

  • Timing switch
  • Remote control & communication
  • Power monitoring
  • Automatic brightness control

A Pro Specs

Parameters A5 Pro A6 Pro A8 Pro A10 Pro
Pixel configuration SMD2727 SMD2727 SMD3535 SMD3535
Pixel Pitch(mm) 5.7 6.67 8 10
Pixel Density(dots/m2) 282224 22500 15625 10000
Module Size(L x W x H)/(mm) 480x320 480x320 480x320 480x320
Panel Size(L x W x H)/(mm) 960x960x75 960x960x75 960x960x75 960x960x75
Panel Material Aluminum Aluminum Aluminum Aluminum
Panel Weight(kg/m2) 28 28 28 28
Color Depth(Bit) 16 16 16 16
Gray Level 65536 65536 65536 65536
Refresh Rate(Hz) 3840 3840 3840 3840
driver Method 1/7 1/5 1/3 1/2
Brightness 5500-7500 6000-10,000 6000-10,000 6000-10,000
Viewing Angle(H/V°) 140/140 140/140 140/140 140/140
AC Power Inpurt(V) AC220±10% AC220±10% AC220±10% AC220±10%
AC Power Frequency(Hz) 50/60 50/60 50/60 50/60
Max. AC Power Input(W/m²) 550 550 550 550
Avg. AC Power Input(W/m²) 170 170 170 170
Storage Temperature -40~60 -40~60 -40~60 -40~60
Working Temperature -20~80 -20~80 -20~80 -20~80
IP Rating IP66 IP66 IP66 IP66
Life Span(Hours) 100000 100000 100000 100000
Installation & Maintenance Front&Rear Front&Rear Front&Rear Front&Rear

Advanced Technology

🌡️ Engine Cooling Technology
High heat dissipation efficiency using engine principle technology. Surface temperature reduced to 36°C.
🔌 Cable-less Design
Power and data cables hidden at bottom of panel. Higher stability than 5V cable connection.
🌊 Harsh Conditions Ready
Ideal for extremely cold and hot environments, seaside, swimming pools, etc.
🔄 One-way Air Exchange Valve
Ensures hot air discharge from power box, avoiding condensation and extending component life.
🛡️ Anti-electromagnetic Shield
Aluminum cover on receiving card for better EMI protection and heat dissipation.
🔒 Security Cable Design
Protects module from falling during maintenance operations.
🔥 Multiple Protection
Anti-surge, smoke alarm, high temperature power blackout for automatic protection.
🌙 Auto Brightness Control
100% brightness for daylight, 25% for night. Smart and energy-efficient.
A pro Series

Outdoor LED Screen

This LED display offers ultra-high brightness (10,000+ nits) with minimal light decay for long-lasting performance. It’s super lightweight and slim, allowing front or rear maintenance to save space. With a common-cathode energy-saving design, it reduces power consumption by over 50% and provides excellent heat dissipation. The display is highly stable, featuring an all-aluminum structure and cable-less connections, and is fully certified for safety with TUV 5VB, IP66, and EMC-Class B approvals.

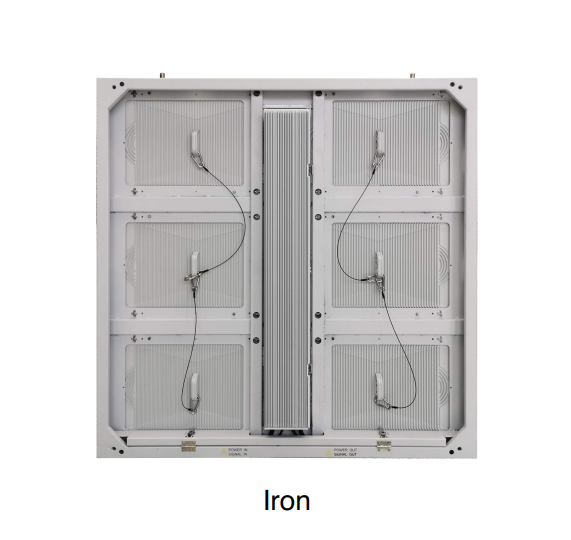

Material - iron

Material - Aluminum

A-Pro Series - Best Common Cathode Aluminum Display | Aleph Digital Labs

Industry-Leading Warranty

5 YEARS WARRANTY

Common warranty in LED field is 2 years, ours is 5 years. Longer warranty periods, better after-sale services, worry-free user experience.
