Curtain Series

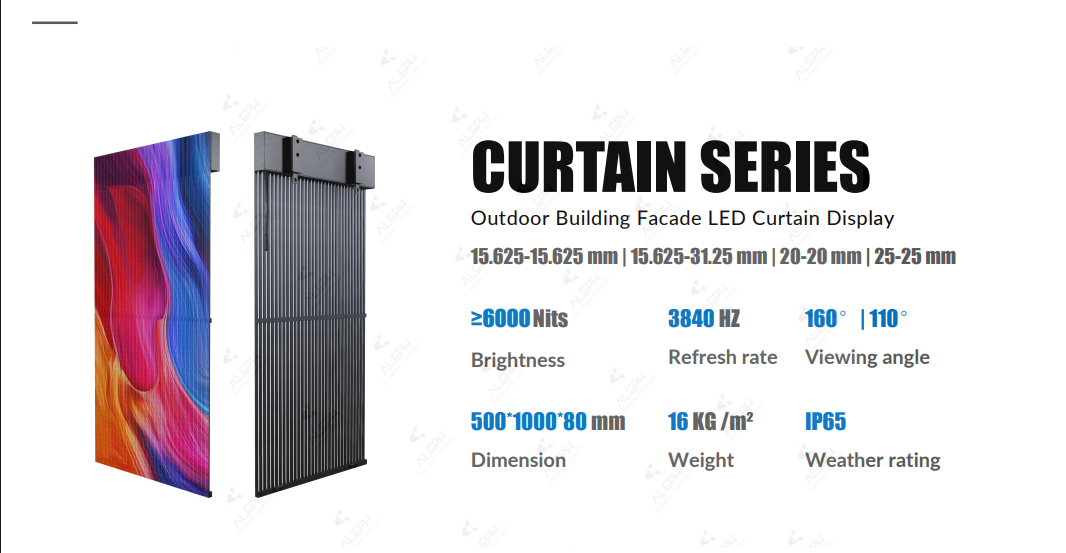

Outdoor Building Facade LED Curtain Display Display

Curtain 15-15
Curtain 15-31
Curtain 20-20
Curtain25-25

Advanced Technology

💎 High Transparency
Up to 65% transparency reduces wind drag, improves self-heat dissipation, and brings minimal influence on indoor brightness..
☀️ Ultra High Brightness
6000 cd/m² brightness ensures visibility even in strong sunlight with minimal angle brightness loss.
🪶 Extreme Lightweight
Only 16-18kg/m² with 7.5-8.5cm thickness. No steel structure needed, easy to install and maintain
🏗️ Strong & Sturdy

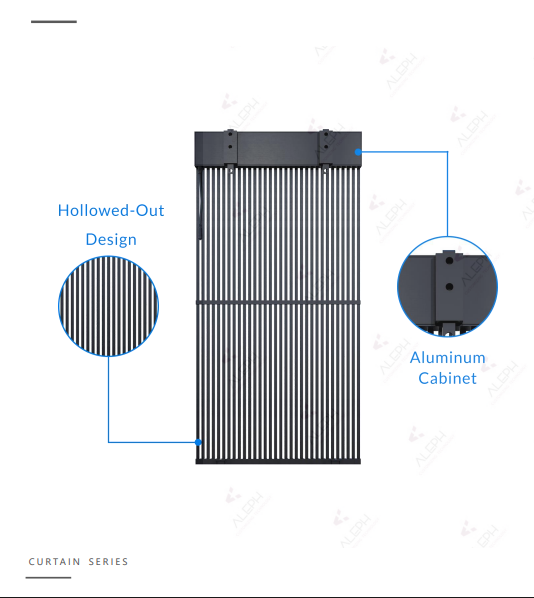

Aluminum structure is solid, durable, anti-collision and anti-rust with special ventilation design for better heat dissipation.
⚡ Simple Installation
Special fast lock and fixture system. Even one person can complete installation. Built-in power supply included.
🔧 Easy Maintenance
LED strip design allows convenient replacement if damage occurs, reducing maintenance costs and downtime.
🌦️ High Protection - IP67
Operates from -30°C to 60°C. Built to withstand outdoor adverse weather conditions without failure.
⏱️ Long Lifespan
100,000 hours operational life with static scanning drive mode for reliable, long-term performance.

Technical Parameter

Parameters Curtain 15-15 Curtain 15-31 Curtain 20-20 Curtain25-25
Pixel pitch 15.625-15.625 15.625-31.25 20-20 25-25
LED configuration SMD2727 SMD2727 SMD3535 SMD3535
Cabinet size 500*1000mm 500*1000mm 500*1000mm 500*1000mm
Transparency 30% 65% 65% 65%
Panel Size(L x W x H)/(mm) 960x960x75 960x960x75 960x960x75 960x960x75
Weight 16KG/ ㎡ 15KG/㎡ 17KG/㎡ 17KG/㎡
Viewing angle 145°/ 145° 145°/ 145° 140°/ 140° 140°/ 140°
Thickness 78mm 75mm 85mm 85mm
Supply voltage (V) AC220-264V AC220-264V AC220-264V AC220-264V
Average power 240w/ ㎡ 240w/㎡ 240w/㎡ 240w/㎡
Max consumption 720w/㎡ 720w/㎡ 720w/㎡ 720w/㎡
Refresh rate 3840Hz 3840Hz 3840Hz 3840Hz
White balance brightness ≥5500-6000 ≥3800 ≥4500 ≥3500
Drive mode Static scanning Static scanning Static scanning Static scanning
Life 100000 100000 100000 100000
Waterproof IP67 IP67 IP67 IP67

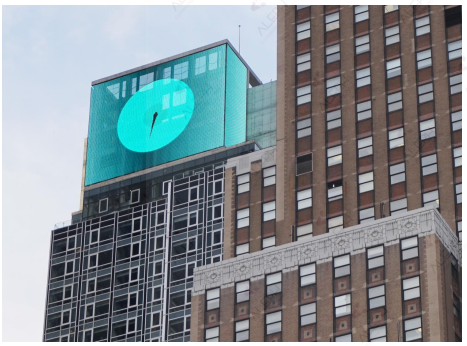

Perfect Applications

🏢 Glass Curtain Walls
🏗️ Building Facades
🏛️ Outdoor Walls
🌆 Building Tops
🎨 Creative Installations
Curtain Series

Outdoor Building Facade LED Display

LED Curtain Display is an outdoor LED panel designed for fixed installation with up to 65% transparency. This makes it the perfect solution for large format digital signage on the outside of buildings, larger outdoor architectural elements, or even creative lower resolution applications. The high brightness from the SMD LEDs will overpower any direct sunlight to ensure your display is always vibrant. The design is extremely thin and lightweight which makes for an easier and cost effective installation. It is mainly used in outdoor walls, glass curtain walls, building tops, and other fields

Used Material

Installation Method

A-Pro Series - Best Common Cathode Aluminum Display | Aleph Digital Labs

Industry-Leading Warranty

5 YEARS WARRANTY

Common warranty in LED field is 2 years, ours is 5 years. Longer warranty periods, better after-sale services, worry-free user experience.
